Industrial Bag Filter Housing
Nuvotech offers high-quality Bag Filter Housing designed for efficient removal of solid contaminants from liquids in various industrial applications. Our bag filter housings are engineered for high performance, durability, and easy maintenance, making them ideal for continuous filtration processes.
These systems are widely used for coarse and fine filtration, ensuring reliable operation and protection of downstream equipment.
Working Principle
The liquid enters the bag filter housing and flows through the filter bag from inside to outside (or outside to inside depending on design). Solid particles are retained inside the bag while clean fluid passes through. The collected contaminants are easily removed by replacing or cleaning the filter bag.
Features:
-
✔ High filtration efficiency
-
✔ Robust and durable construction
-
✔ Easy bag replacement and maintenance
-
✔ Low pressure drop
-
✔ Suitable for high flow applications
-
✔ Available in single and multi-bag configurations
-
Technical Specification:
MOC : SS316L, SS316, SS304, MS,PTFE LINING
Suitable Size : 4″ x 10″, 4″ x 20″, 7″ x 17″, 7″ x 32
Line Size : 1″ NB to 40″ NB
Connection : BSP(F), NPT(F) Thread, Flanged 150#, Table E, Table F
Test Pre. : up to 100 kg/cm2
Flow Rate : 1- 1500 m3/hr.
Design : Customized (as per your requirement)
Type : Jacketed / Non-Jacketed
Application:
-
Chemical industry
-
Food & beverage processing
-
Water treatment plants
-
Pharmaceutical industry
-
Paints & coatings
-
Oil & lubricant filtration

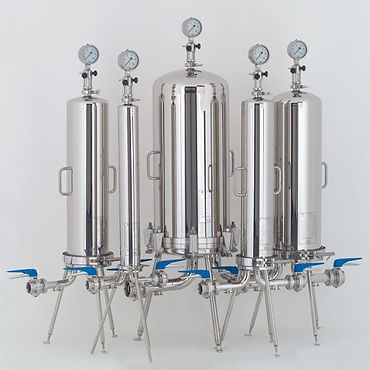

Industrial Cartridge Filter Housing
Nuvotech offers high-quality Cartridge Filter Housing designed for fine filtration of liquids and gases across various industrial applications. These housings are engineered to provide efficient removal of fine particles, ensuring clean output and protection of downstream equipment.
Our cartridge filter housings are suitable for low to high flow applications and are widely used where precision filtration is required.
Working Principle
The fluid enters the cartridge filter housing and passes through the filter cartridges, where fine contaminants are retained on the surface or within the media. Clean fluid exits through the outlet, ensuring high-quality filtration. The cartridges can be easily replaced or cleaned depending on the application.
Features:
-
✔ High filtration efficiency for fine particles
-
✔ Suitable for liquid and gas filtration
-
✔ Robust stainless steel construction
-
✔ Easy cartridge replacement
-
✔ Low pressure drop
-
✔ Leak-proof design
-
✔ Available in multiple cartridge configurations
Technical Specification:
-
Flow Rate: Up to 200 m³/hr (depending on design)
-
Micron Rating: 0.1 – 100 micron
-
Material of Construction: SS304 / SS316 / Carbon Steel
-
Pressure Rating: Up to 10 bar (higher on request)
-
Cartridge Length: 10", 20", 30", 40"
-
Number of Cartridges: Single / Multi cartridge
-
Connection Type: Flanged / Threaded
Application :
-
Water treatment plants
-
Chemical processing
-
Pharmaceutical industry
-
Food & beverage industry
-
Oil & gas applications
-
Paints and coatings
Industrial Duplex Filter Housing
Nuvotech offers high-quality Duplex Filter Housing designed for continuous filtration without process interruption. The duplex system consists of two filter housings connected through a valve arrangement, allowing one unit to operate while the other is cleaned or serviced.These filters are ideal for applications where uninterrupted flow is critical, ensuring reliable performance and reduced downtime.
Working Principle
Duplex filter housing consists of two parallel filter chambers connected with valves. During operation, one chamber filters the fluid while the other remains on standby. When the active filter becomes clogged, the flow is diverted to the second chamber, allowing the first one to be cleaned without stopping the process.
Features :
-
✔ Continuous operation without shutdown
-
✔ Dual housing design for easy maintenance
-
✔ Heavy-duty and durable construction
-
✔ Low pressure drop
-
✔ Suitable for high flow applications
-
✔ Easy switching between filters
-
✔ Long service life
Technical Specification:
-
Flow Rate: Up to 500 m³/hr (customizable)
-
Micron Rating: 5 – 2000 micron
-
Material of Construction: SS304 / SS316 / Carbon Steel
-
Pressure Rating: Up to 16 bar (higher on request)
-
Filter Type: Basket / Cartridge type
-
Connection Type: Flanged
-
Valve Type: Ball valve / Butterfly valve
Application :
-
Chemical industry
-
Water treatment plants
-
Oil & gas industry
-
Power plants
-
Marine applications
-
Cooling water systems
Industrial Basket Filter & Strainer
Nuvotech offers high-performance Basket Filters and Strainers designed for efficient removal of coarse particles from liquids in industrial pipelines. These filters are widely used to protect pumps, valves, and other downstream equipment from damage caused by solid contaminants.
Our basket strainers are engineered for durability, high dirt holding capacity, and easy maintenance, making them ideal for continuous industrial operations.
Working Principle
The fluid enters the basket filter housing and flows through the perforated or mesh basket. Solid particles are trapped inside the basket while clean fluid passes through the outlet. The basket can be easily removed, cleaned, and reused, ensuring continuous and efficient filtration.
Features
-
✔ High dirt holding capacity
-
✔ Robust and heavy-duty construction
-
✔ Easy cleaning and maintenance
-
✔ Low pressure drop
-
✔ Suitable for high flow applications
-
✔ Replaceable or cleanable basket
-
✔ Long service life
Technical Specifications
-
Flow Rate: Up to 1000 m³/hr (customizable)
-
Micron Rating: 5 – 5000 micron
-
Material of Construction: SS304 / SS316 / Carbon Steel
-
Pressure Rating: Up to 16 bar (higher on request)
-
Basket Type: Perforated / Wire mesh
-
Connection Type: Flanged / Threaded
-
Design Type: Simplex / Duplex
Application:
-
Water treatment systems
-
Chemical processing plants
-
Oil and gas industry
-
Cooling water systems
-
Irrigation systems
-
Industrial pipelines

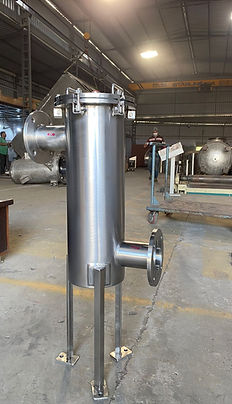

Industrial Magnetic Filter Housing
Nuvotech offers high-performance Magnetic Filter Housing designed to efficiently remove ferrous and magnetic particles from liquids and process fluids. These filters are widely used in industries where metal contamination can damage equipment or affect product quality.
Our magnetic filter housings are engineered for high efficiency, durability, and easy maintenance, ensuring reliable protection of downstream equipment.
Working Principle
The fluid passes through the magnetic filter housing where high-intensity magnetic rods capture and retain ferrous particles such as rust, iron filings, and metallic contaminants. Clean fluid flows out while the trapped particles remain attached to the magnetic surface. The rods can be easily removed and cleaned periodically.
Features
-
✔ High-efficiency removal of ferrous particles
-
✔ Strong permanent magnetic rods
-
✔ Robust and corrosion-resistant construction
-
✔ Easy cleaning and maintenance
-
✔ No consumables required
-
✔ Low pressure drop
-
✔ Long service life
Technical Specification :
-
Flow Rate: Up to 300 m³/hr (customizable)
-
Magnetic Strength: Up to 10,000–12,000 Gauss
-
Material of Construction: SS304 / SS316
-
Operating Temperature: Up to 200°C (as per magnet grade)
-
Pressure Rating: Up to 10 bar (higher on request)
-
Magnetic Rods: Removable type
-
Connection Type: Flanged / Threaded
Applications:
-
Chemical processing
-
Food and beverage industry
-
Pharmaceutical industry
-
Oil and lubricant filtration
-
Coolant filtration systems
-
Paints and coatings

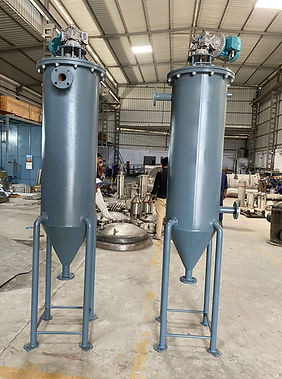

Automatic Self Cleaning Filter System
Nuvotech offers advanced Self Cleaning Filters designed for continuous and automatic removal of contaminants from liquids without interrupting the process. These systems eliminate the need for manual cleaning, ensuring consistent performance, reduced downtime, and lower maintenance costs.
Our self cleaning filters are engineered for high efficiency and are suitable for a wide range of industrial applications where uninterrupted filtration is critical.
Working Principle
The fluid enters the filter housing and passes through the filtration element, where contaminants are retained on the screen surface. As the dirt accumulates, differential pressure increases, triggering the automatic cleaning mechanism.
The cleaning system (scraper/brush/backwash) removes the accumulated particles and flushes them out, ensuring continuous filtration without stopping the process.
Features:
-
✔ Fully automatic self-cleaning mechanism
-
✔ Continuous operation without shutdown
-
✔ High filtration efficiency
-
✔ Low pressure drop
-
✔ Reduced maintenance and labor cost
-
✔ Robust and durable construction
-
✔ Suitable for high flow and pressure systems
Technical Specification :
-
Flow Rate: Up to 1000 m³/hr (customized designs available)
-
Micron Rating: 10 – 3000 micron
-
Material of Construction: SS304 / SS316 / Carbon Steel
-
Pressure Rating: Up to 10 bar (higher on request)
-
Cleaning Method: Scraper / Brush / Backwash (as per design)
-
Control System: Automatic / PLC-based
-
Connection Type: Flanged
Application:
-
Cooling water systems
-
Industrial process water
-
Chemical industry
-
Power plants
-
Irrigation systems
-
Oil & gas industry
Types Available
🔹 Scraper Type Self Cleaning Filter
-
Suitable for sticky contaminants
🔹 Brush Type Self Cleaning Filter
-
Ideal for medium dirt loads
🔹 Backwash Type Filter
-
Best for high flow applications
🔷 Optional Features
-
PLC control panel
-
Differential pressure switch
-
Automatic drain valve
-
Custom screen design
-
High-pressure design

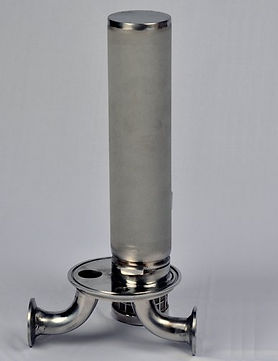

Sintered Filter Housing for Steam Filtration & Catalyst Recovery System
Nuvotech offers advanced Sintered Filter Housing systems designed for high-temperature and high-pressure applications such as steam filtration and catalyst recovery. These systems utilize sintered metal filter elements that provide precise filtration, high strength, and excellent resistance to extreme operating conditions.
Our sintered filtration systems are ideal for removing fine particulate matter from steam and recovering valuable catalysts from process streams, ensuring improved efficiency, product quality, and cost savings.
Working Principle
The process fluid or steam enters the sintered filter housing and passes through sintered metal elements. These elements trap fine particles on their surface and within their porous structure.
For catalyst recovery applications, valuable catalyst particles are retained and can be collected and reused. The system can be cleaned through backflushing or manual cleaning, ensuring continuous and efficient operation.
Features :
-
✔ Suitable for high temperature applications (up to 400°C+)
-
✔ High pressure resistance
-
✔ Fine filtration capability (micron-level)
-
✔ Excellent mechanical strength
-
✔ Corrosion and chemical resistance
-
✔ Reusable and long service life
-
✔ Low maintenance and high reliability
Technical Specification :
-
Filtration Rating: 0.5 – 10 micron (customizable)
-
Operating Temperature: Up to 400°C (depending on MOC)
-
Operating Pressure: Up to 25 bar (or higher on request)
-
Material of Construction: SS316L / Inconel / Hastelloy
-
Filter Element Type: Sintered metal candle / cartridge
-
Flow Rate: As per design requirement
-
Connection Type: Flanged
-
Design Type: Vertical / Horizontal housing
Application :
-
🔹 Steam Filtration
-
Removal of rust, scale, and solid particles from steam
-
Protection of turbines, valves, and process equipment
-
🔹 Catalyst Recovery System
-
Recovery of expensive catalysts from process streams
-
Used in petrochemical and chemical industries
-
🔹 Additional Applications
-
High-temperature gas filtration
-
Chemical processing
-
Pharmaceutical industry
-
Oil & gas plants
🔷 System Options
🔹 Candle Type Sintered Filter
-
High surface area
-
Suitable for fine filtration
🔹 Multi-Element Housing
-
For high flow rate applications
🔹 Backwash / Blowdown System
-
For automatic cleaning
🔷 Optional Features
-
High-temperature insulation
-
Differential pressure monitoring
-
Steam-compatible sealing (Viton / Graphite)
-
Automated cleaning system
-
Customized design as per process
